LoRa Fiberglass Antenna Kit; 863-870MHz; 5.8dBi; 800mm; RF Explorer RFELA-2/58X

Fibreglass LoRa antenna with a gain of 5.8 dBi, frequency range 863-870MHz, and 800mm length, comes with a CFD200 cable with 1m length and a mounting brakets, compatible with SenseCAP M1 Indoor Gateway.



Availability In stock (39 pcs)
Delivery offer
€74 €89,54 incl. VAT
LoRa Fiberglass Antenna Kit; 863-870MHz; 5.8dBi; 800mm; RF Explorer RFELA-2/58X

We are official distributor of SenseCAP M1 by SeeedStudio

Free shipping across
whole Europe

Technical support
+ Secure Payment

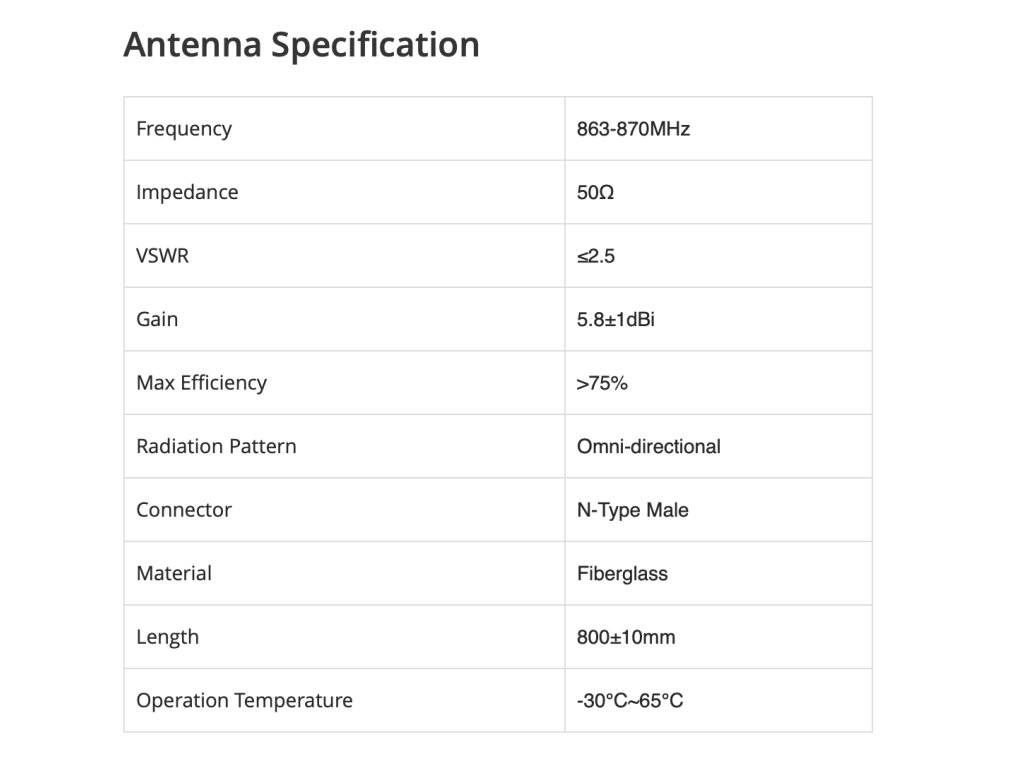

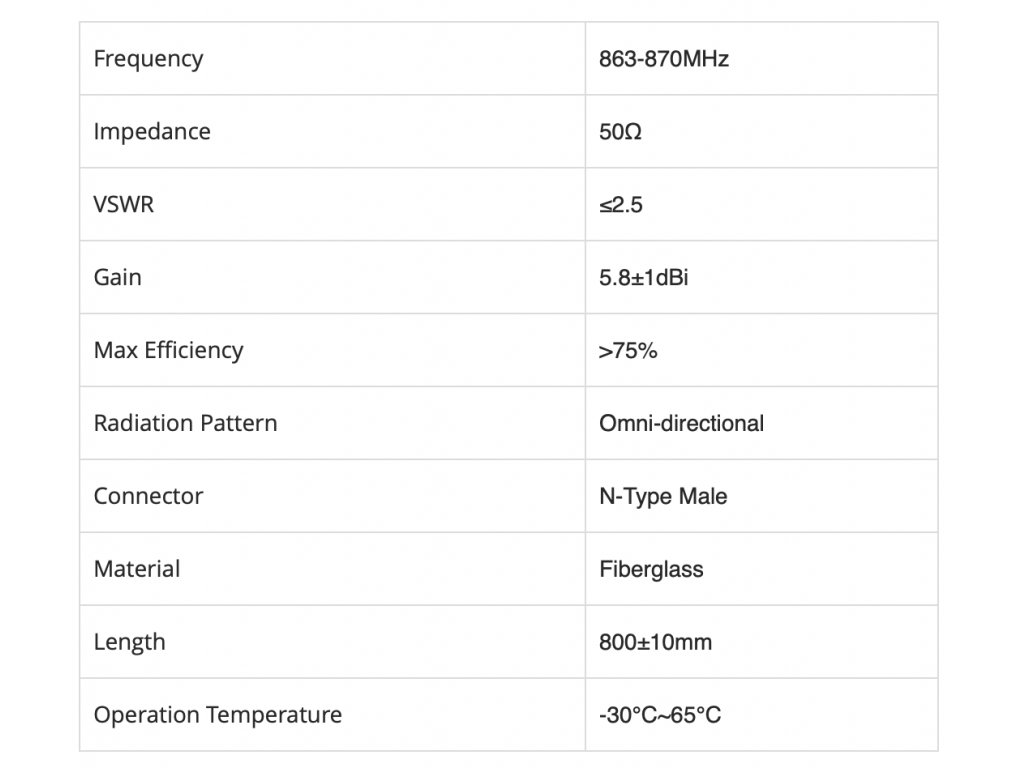

Features

  •  Average gain: 5.8dBi
  •  Frequency range: 863-870MHz
  •  Length of 80cm
  •  Robust enough to withstand the harsh outdoor environment
  • Can connect to the SenseCAP Outdoor Gateway and SenseCAP M1 Indoor Gateway

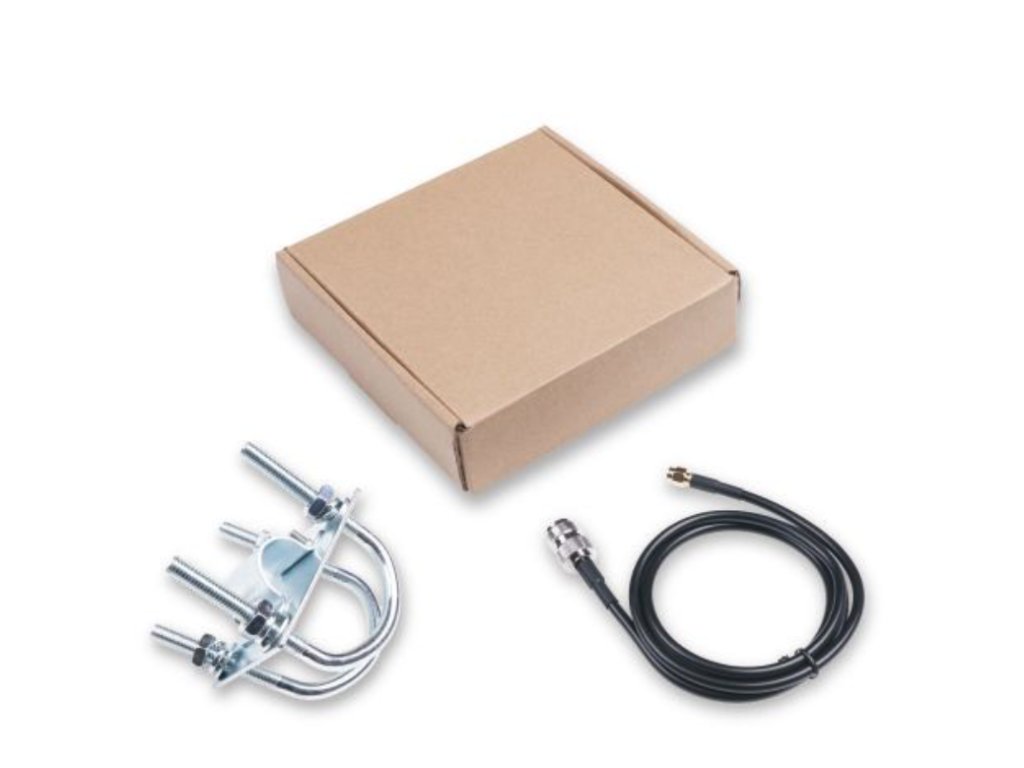

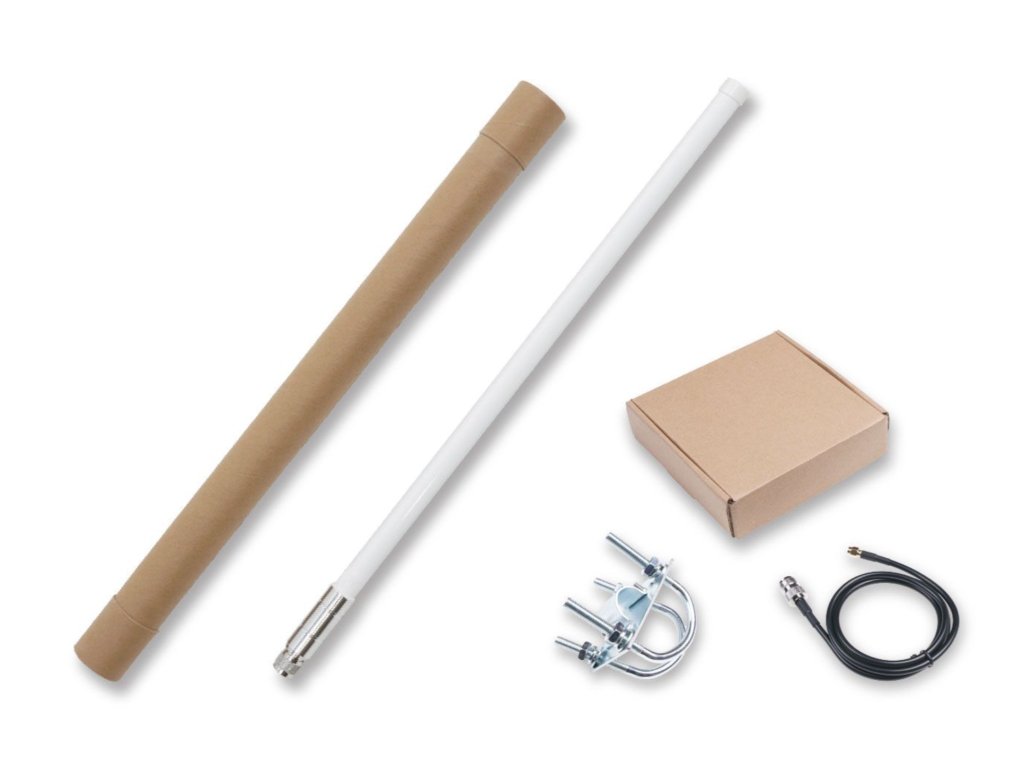

  •  Includes hardware for mounting
  •  Comes with a 1m cable

For some applications like in an urban environment or where large stretches of land have to be monitored the normal range of LoRa might not be enough. So If you need to increase the range for your LoRa devices, then this outdoor LoRa Fiberglass antenna will be the ideal addition to your LoRa system.  It’s a robust solution to provide extra power and range for outdoor LoRa Base stations. The antenna has an average gain of 5.8 dBi, a length of 80cm, and a frequency range from 863-870MHz, and it comes with hardware for pole and wall mounting.

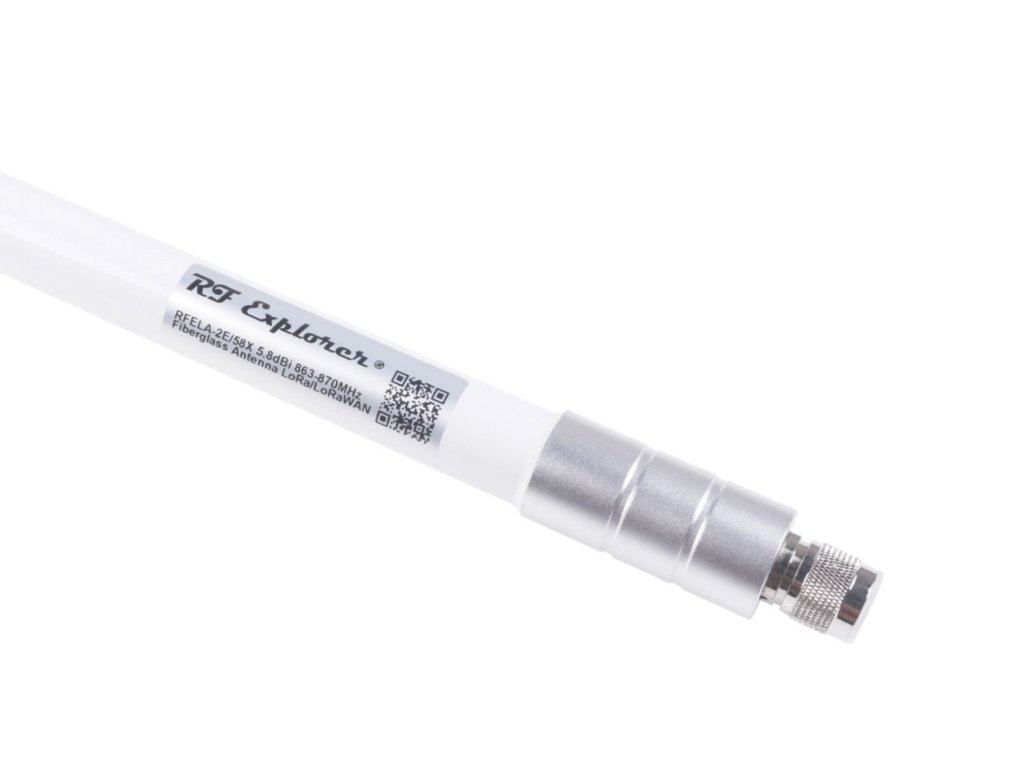

The Antenna has an N-J Double tooth connector, and it comes with an N-Female to RP-SMA plug cable so it can be easily connected to the SenseCAP Gateways.

Application

The antenna can be used in any environment where long-range LoRa connections are required.

  •  Agriculture
  •  Environmental Monitoring
  •  Urban Monitoring

Antenna Guide

This guide shows you the principle of antenna gain and what kinds of antenna you might need, introduced by SenseCAP MX.
